Overview

What you can measure

  • Critical Micelle Concentration
    Du Noüy ring and Wilhelmy plate methods
  • Surface tension
    Du Noüy ring and Wilhelmy plate methods
  • Interfacial tension
    Du Noüy ring and Wilhelmy plate methods
  • Dynamic contact angle
    Wilhelmy methods
  • Surface free energy
    Based on contact angle measurements
  • Powder wettability
    Washburn method
  • Density
    Density probe
  • Sedimentation
    Sedimentation probe
  • Adhesion force
    Liquid droplet pull-off method

Widen you view

In this 1-minute video, you will get a quick view of Sigma CMC. For the best experience, watch it in fullscreen mode!

3 reasons to invest

Full CMC automation for high precision

Everything from measuring surface tension and changing surfactant solution concentration to analyzing the shape of the CMC curve automatically ensures a user-independent and unattended operation. Integrated magnetic stirrer ensures surfactant solution homogeneity.



Sophisticated software

The OneAttension software provides full versatility and automation, easy measurement setup, and live results. But above all, it is really user-friendly and intuitive. Includes features like autosearch to reduce CMC measurement time by automatically increasing the number of data points only around the CMC point.



Optimized yet versatile

Sigma CMC is an adaptable and versatile system that not only measures CMC but also has the full support of other surface measurement modes from surface tension to powder wettability. This ensures the system is future-proof for any measurement needs that may come to you.

Download brochure

Would you like to get the full brochure to your inbox?

Specifications

A closer look

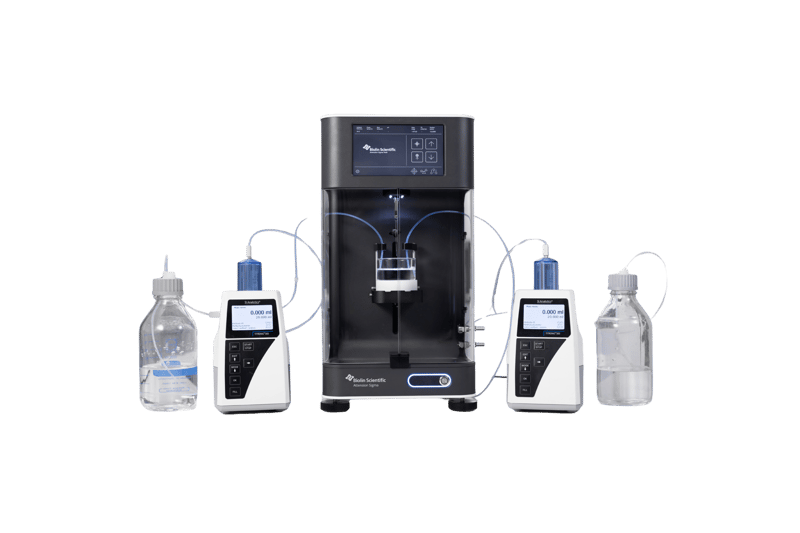

Sigma CMC is based on the versatile Sigma 701 that is known for its particularly high sensitivity. It can also be used with the Sigma 700 which is optimized for powder wettability and contact angle measurements. Check out the system specifications below.


Sigma 700
Sigma 701

Available Measurements

Surface tension

      √        √

Interfacial tension

       √        √

Critical Micelle Concentration

 Automatic  Automatic

Dynamic contact angle

       √        √

Surface free energy

       √        √

Powder wettability

       √        √

Density

       √        √

Sedimentation

       √        √

Balance Specifications

Measuring range (mN/m)

1…2000 1…2000

Displayed resolution (mN/m)

0.001 0.001

Density range (g/cm3)

0…2.2 0…2.2

Density resolution (g/cm3)

0.0001 0.0001

Maximum load (g)

210 5

Weighing resolution (mg)

0.01 0.005

Force resolution (µN)

0.1 0.05

Contact angle range (°)

0…180 0…180

Contact angle resolution (°)

0.01 0.01

Calibration & Locking

Automatic Manual

Measuring Unit Specifications

Sample stage

Motorized Motorized

Sample stage speed (mm/min)

0.01…500 0.01…500

Stage positioning resolution (µm)

0.016 0.016

Dimensions (L×W×H, cm)

33.3×24.4×62 33.3×24.4×62

Weight (kg)

16.3 13

Power supply (VAC)

85…264 85…264

Power consumption (W)

13 13

Frequency (Hz)

47…440 47…440

Common Accessories

Temperature control range (° C)

-20…+200 -20…+200

Stirrer

       √        √

Software

Provided software

OneAttension OneAttension

System Requirements

Recommended system requirements

  • 1 GHz processor
  • 1 GB RAM
  • 40 GB hard disk drive (20 GB free)
  • 1 USB-port
  • Accessories such as water bath and liquid dispenser may require a free USB port

Operating system requirements

  • Windows 7 & 8 &10 (32 or 64 bit)
  • Windows Vista (32 bit)

Software

OneAttension Software

OneAttension software is a fine combination of a very intuitive interface and high functionality. Follow your experiment live and get the results within seconds. Let's have a look at the features!

1



OneAttension Features

  • Full automation
    OneAttension supports fully automated measurements - get CMC values with a click of a button
  • Live analysis
    The results are shown in real-time during the measurement. You can conveniently monitor your results as they are forming
  • Best in class interface
    The software is easy to learn, and the logical interface allows even complex measurements to be performed with ease
  • Flexibility for every need
    OneAttension has been designed to meet the requirements of almost any applications you may have. You can easily adjust measurement parameters to match your specific application needs
  • Data handling and exporting made simple
    Data analysis, plotting, and statistical analysis can all be done with a few clicks to give you accurate results within seconds. All data can easily be exported further to Excel, for example
  • Optimal for industrial use
    Measurement reports can be created with a few clicks and the user manager conveniently handles all different users – with desired privacy levels. Autosearch function saves measurement time

Accessories

Add more possibilities

Have a look at a few of the accessories that can be used for added capabilities. You can find the full range below in the accessory brochure.

t106

Platinum Du Nouy ring

Pt-Ir-ring made to fulfill the requirements at least in following standards; ISO 301, ISO 4311, ISO 6889, ASTM D1331 and ASTM D 971. Includes also additional weight for push-mode.

T107

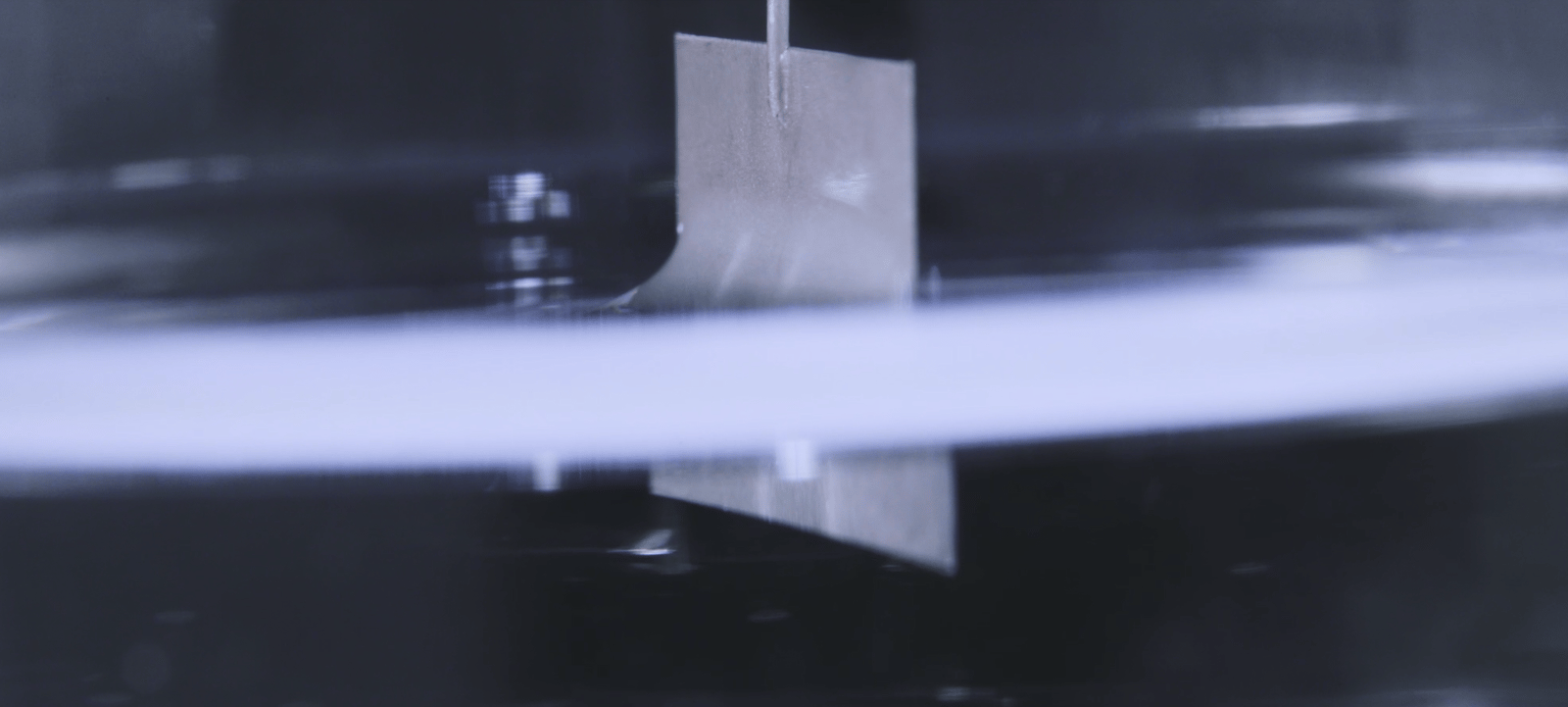

Platinum Wilhelmy plate

Platinum Wilhelmy plate with micro roughened surface.

t705a

Thermostatic vessel (from -20 to +200°C)

For temperature control of the sample liquid. A heat exchange vessel with fluid jacket type of construction.

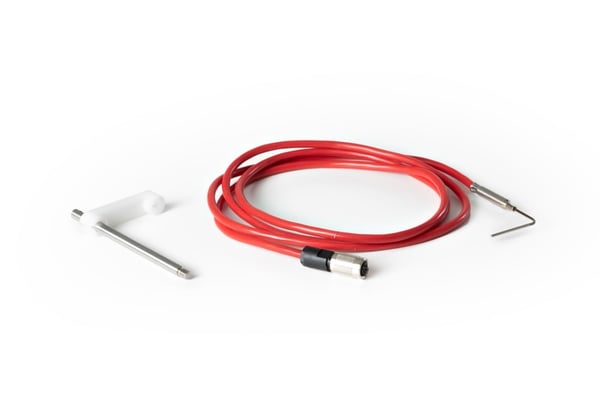

t708

Temperature probe

PT-100 temperature measurement probe with holder. The temperature is shown in OneAttension software.
