In a hurry?

This 1-minute video will give you an overview of interfacial viscoelasticity measurements with Theta Pulsating Drop.
pico

measurements

  • Pulsating drop For dilational interfacial rheology measurement
  • Pendant drop For surface and interfacial tension
  • Reverse pendant drop For surface and interfacial tension
With additional add-ons, other measurement modes can be integrated.

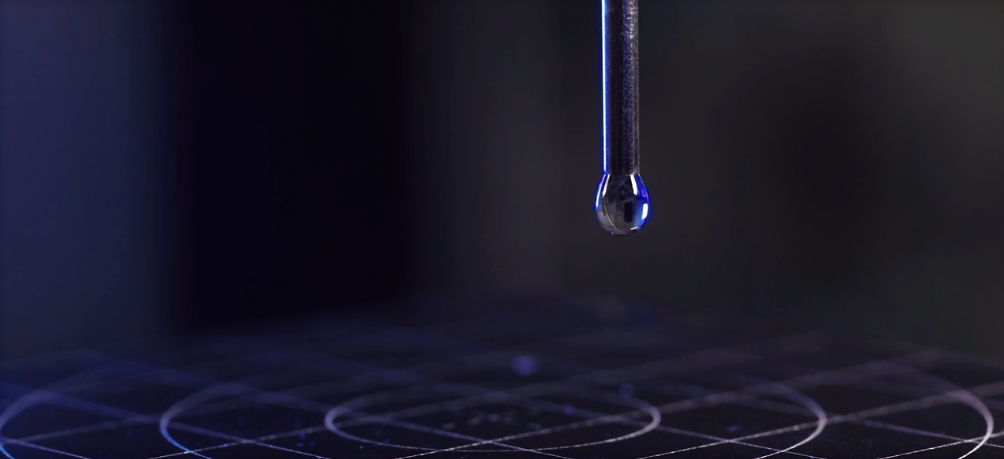

Pulsating drop

Measure dilatation viscoelastic properties
Study emulsion and foam stability
Calculate interfacial viscosity and elasticity
No need for additional software

Key features

  • Evaporation compensation tool

    Keeps the drop volume stable even during long measurements

  • Modularity

    Same instrument for interfacial rheology, surface tension, interfacial tension, and contact angle measurements

  • Measurements with captive bubble

    Enables measurements at liquid-liquid interface

  • Versatility

    One instrument for contact angle, surface and interfacial tension and interfacial rheology

  • Temperature control

    Temperature control up to 250 C to measure at temperatures meaningful for you

  • Modularity

    Upgrade with additional modules as your research evolves
All-inclusive system

Software that is all-inclusive, with unlimited licenses and free updates!

pulsating (1)

Every Attension Optical Tensiometer is complemented by seamlessly integrated sophisticated OneAttension software. Our software updates are effortlessly automatic and, best of all, completely complimentary.

Applications

  • Food & beverages
  • Chemicals
  • Pharmaceutical

3 reasons to invest

Interfacial viscoelasticity with ease

Fully automatic measurements of interfacial viscosity and elasticity are user-independable and highly accurate due to automatic droplet creating and pulsation as well as due to high end imaging system.

Smarter rheology measurements

Automatic evaporation compensation keeps the droplet volume stable. Wide pulsation frequency range up to 10 Hz with reliable piezo technology. Sinusoidal, triangle, and square waveforms for wide possibilities. Temperature control option up to 250 C.

Wide research possibilities

In addition to interfacial rheology, the same system is ready for surface tension, interfacial tension, contact angle and surface free energy measurements. Handle your current and future surface science needs at once.

Download brochure

Would you like to get the full brochure to your inbox?

Get it now
Close

A closer look

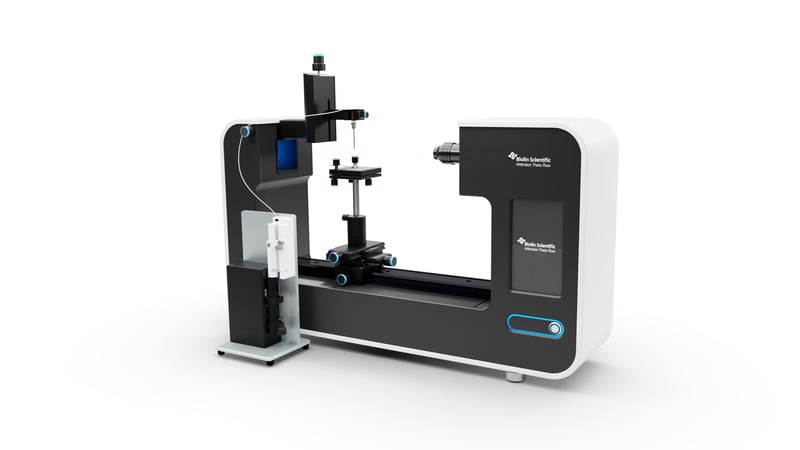

Theta Pulsating Drop is based on the extremely versatile Theta Flex optical tensiometer which is characterized by its versatility, reliability and automation. Check out the system specifications below.


Theta Flex

Available Measurements
Static contact angle
 √
Dynamic contact angle
 Automatic
Surface/Interfacial tension
 √
3D surface roughness
 √
Interfacial rheology
 √
Surface free energy
 Zisman Plot, OWRK/Extended Fowkes, van Oss Acid-Base, Wu, Neumann’s Equation of State, Schultz 1 and 2

Available Measurement Methods
Sessile drop
 √
Batch sessile drop
 √
Captive bubble
 √
Pendant drop
 √
Reverse pendant drop
 √
Meniscus
 √
Dynamic contact angle
 Automatic
Pulsating drop
 √
3D Topography
 √

Hardware
Measuring range (°, mN/m)
 0…180, 0.01…2000
Accuracy (°, mN/m)
 ±0.1, ±0.01
Maximum sample size (mm)
 Unlimited×100×320 (with stage)
Integrated sample holders
 Yes
Frame interval
 0.33 ms ... 1000 s
Maximum resolution (px)
 1984×1264
Maximum measuring speed (fps)
 3009
Camera
 USB 3.0 digital camera with zoom
Camera protection
 Inside instrument covers
Camera view angle (°)
  -4.5 ... 2.5
Light source and size
 LED based background lighting, 62 x 62 mm
Field of view (Ø, mm)
 1.44…32.3
Measurement indicator LED
 Yes
Disposable tip dispensing
 √
Dimensions — Basic frame (L×W×H, mm)
  765 x 230 x 435
Weight — Basic frame (kg)
 26
Power supply (VAC)
 100-240
Frequency (Hz)
 50...60

Pulsating Drop Specifications
Perturbation principle

Piezo-electric membrane enclosed in a chamber
Frequency range

0-30 Hz(most practical range 0.01-10 Hz)
Frequency resolution

0.001 Hz
Maximum peak-to-peak volume

~ 0.8 μl
Sample liquid volume needed

5 μl
Material

PEEK, PTFE, FPM, Titanium

Dispenser
Droplet placement
Sample stage
Camera
Possible upgrades
Theta Flex Auto 5
 Auto, 4 liquids Auto Auto XYZ 1984 × 1264 px, max 3009 FPS Full
Theta Flex Auto 4
 Auto, 2 liquids Auto Auto XYZ 1984 × 1264 px, max 3009 FPS Full
Theta Flex Auto 3
 Auto, 1 liquid Auto Auto XYZ 1984 × 1264 px, max 3009 FPS Full
Theta Flex Auto 2
 Auto, 2 liquids Auto Auto X, Manual YZ 1984 × 1264 px, max 3009 FPS Full
Theta Flex Auto 1
 Auto, 1 liquid Auto Manual XYZ 1984 × 1264 px, max 3009 FPS Full
Theta Flex Plus
 Auto, 1 liquid Manual Manual XYZ 1984 × 1264 px, max 3009 FPS Full
Theta Flex Basic
 Manual Manual Manual XYZ 1984 × 1264 px,  max 3009 FPS Full

OneAttension Software

OneAttension software is a fine combination of a very intuitive interface and high functionality. Follow your experiment live and get the results within seconds. Let's have a look at the features! 



OneAttension Features

  • Automatic droplet creation, pulsation and shape analysis
    Less user-dependency, more accuracy
  • Autonomous measurements
    Set up the desired measurement parameters and the entire measurement will run automatically
  • Versatile pulsation features
    Sinusoidal, triangle, and square waveforms. Adjustable frequency, amplitude, recording time, and settle time
  • Results always available
    Reanalyze the results as many times as you wish. Plotting, exporting, comparing, and reporting all included
  • User-friendly interface
    To get you going in no time
  • Comes with full capabilities
    Every measurement mode included from interfacial rheology to interfacial tension and contact angle

Add more possibilities

Have a look at a few of the additional modules that can be used for added capabilities. You can find the full range of accessories below. 

c203e

Measuring Chamber, electrically heated, 250° C

Thermostatted electrically heated measuring chamber for temperature control up to 250 C.

t316

Topography 3D module

The unique 3D Topography module takes the wettability and adhesion analysis into a completely new level by measuring both contact angle and surface roughness of the sample in a single measurement. Distinguish the effect of roughness on contact angle and surface free energy.

t317

High Pressure Chamber

The High Pressure Chamber is designed for wettability research within enhanced oil recovery and enables measurements at pressures up to 400 bars and temperatures up to 200°C. Integrated chamber piston and sample port are optimized for the best usability and versatility.

c204a

Tilting Cradle

A software controlled tilting cradle. Used for studying dynamic contact angles. Tilting range from 0 to 90° and tilting resolution 0.1°.

t315a

Picoliter Dispenser

Automated picoliter-scale drop formation. Especially for inkjet applications and for measuring contact angle on very small sample areas.
