In a hurry?

Discover New Attension Wafer and all of its advantages in this video.
waferVideoCocer

measurements

  • Sessile drop For static contact angle measurement of a liquid droplets
  • Automatic DCA For dynamic contact angle measurement
  • Meniscus For static contact angle measurement with a fiber/rod
  • Pendant drop For surface and interfacial tension
  • Pulsating drop For dilational interfacial rheology measurement.
  • Batch sessile drop For static contact angle measurements
  • Tilted drop For dynamic contact and roll-off angle measurements.
  • Captive bubble For static contact angle measurement of a gas bubble
  • Reverse pendant drop For surface and interfacial tension
Some measurements requires add-on.

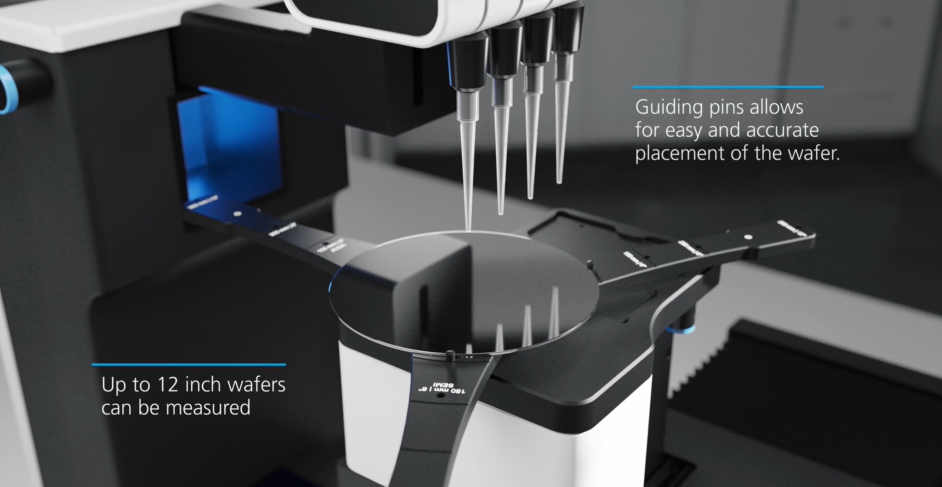

Automatic contact angle mapping of silicon wafers

User independent measurements
Through set recipes and automation
Precision in sample positioning
Through sample alignment pins and integrated vacuum connector

Key features

  • 4 disposable pipette tips

    Superior accuracy with zero possibilities for contamination. Fill all with water or the liquid of your choice

  • Best-in-class camera with DropletPlus

    Superior image quality and improved accuracy

  • Integrated sensors

    Increased traceability of your measurements
All-inclusive system

Software that is all-inclusive, with unlimited licenses and free updates!

Every Attension Optical Tensiometer is complemented by seamlessly integrated sophisticated OneAttension software. Our software updates are effortlessly automatic and, best of all, completely complimentary.

CA remake 432x432-1

Applications

  • Electronics

A closer look

Check out the specifics of Theta Flow and compare it to our Theta Flex and Theta Lite to find out what you need. Theta Flow systems come in ready-made packages optimized for your automation level. Other packages can also be formed easily thanks to the modular design.

Compare Attension Optical Tensiometer range




Theta Flow
Theta Flex
Theta Lite

Software and hardware
Measuring range (°, mN/m)

0…180, 0.01…2000

 0…180, 0.01…2000 0…180, 0.01…2000
Accuracy (°, mN/m)

±0.1, ±0.01

 ±0.1, ±0.01 ±0.1, ±0.01
Maximum sample size (mm)

Unlimited×100×320

 Unlimited×100×320 (with stage) Unlimited×45×200 (with stage)
Integrated sample holders
√
√
√
Maximum resolution (px)

2592 x 2048 (5 MP)

 1984 × 1264 (2.3 MP) 1280 × 1024 (1.3 MP)
Maximum measuring speed (fps)

3422

 3009 2068
Camera

CMOS 1'' USB 3.0 digital camera with zoom

 CMOS 2/3'' USB 3.0 digital camera with zoom CMOS 1/2'' USB 3.0 digital camera with fixed zoom
Image focusing

Software-controlled autofocus, manual fine focus in optics

 Manual fine focus in optics Manual fine focus by optical rail
Image quality

Enhanced with DropletPlus technology, Native

 Native Native
Camera protection

Inside instrument covers

 Inside instrument covers Inside instrument covers
Camera view angle (°)

-4 ... 2.5, with digital scale

 -4.5 ... 2.5, with mechanical scale -2 ... 2
Light source and size

LED based homogeneous background lighting, 62 x 62 mm

 LED based homogeneous background lighting, 62 x 62 mm LED based background lighting, Ø 20 mm
Field of view (Ø, mm)

1.44…45.3

 1.44…32.3 2.9…12
Measurement indicator LED
√
√
-
Integrated touch display
√
-
-
Environment monitoring
√
-
-
Disposable tip dispensing
√
√
√
Software

OneAttension, includes all measurement modes

OneAttension, includes all measurement modes

OneAttension, includes all measurement modes
Dimensions — Basic frame (L×W×H, mm)

765 x 230 x 435

 765 x 230 x 435 495 x 130 x 310
Weight — Basic frame (kg)

29

 26 5
Power supply (VAC)

100...240

 100...240 100…240
Frequency (Hz)

50...60

 50...60 50 ... 60

Available Measurements
Static contact angle and captive bubble
√
√
√
Batch contact angle
√
√
√
Dynamic contact angle
√
√
√
Meniscus contact angle
√
√
√
Surface/Interfacial tension
√
√
√
3D surface roughness and roughness-corrected contact angle
√
√
-
Interfacial rheology
√
√
-
Surface free energy

Zisman Plot, OWRK/Extended Fowkes, van Oss Acid-Base, Wu, Neumann’s Equation of State, Schultz 1 and 2

OneAttension Software

OneAttension software for Theta Flow is a fine combination of a very intuitive interface and wide functionality. Its cornerstones are a high level of automation, ease of use, and top accuracy. Let's have a look at the features!



OneAttension Features

  • Autofocus keeps the picture sharp
    Less user-dependency, more accuracy
  • User-friendly interface
    To get you going in no time
  • Automatic baseline detection and drop shape fitting
    For user-independent precision
  • Seamless interplay with integrated touch screen
    Set up your measurements in seconds
  • Optimized image quality
    Ultra-high resolution image optimized with DropletPlus technology for reliable results
  • Batch contact angle mode
    When you have plenty of tests to run in no time
  • Fully automatic dynamic contact angle mode with the needle method
    For user-independent results
  • Monitors the measurement environment
    High traceability of results linked to measurement conditions

Wetting and Adhesion analysis is now part of the all-inclusive OneAttension software!

Add more possibilities

With the modular design and an extensive range of modules and accessories you have room to upgrade or change the Attension Theta Flow as your needs evolve. Have a look at a few selected examples or explore the full range below.

t316

Topography 3D module

Theta Flow can be combined with the unique 3D Topography module that takes the wettability and adhesion analysis to a completely new level by measuring both contact angle and surface roughness of the sample in a single measurement. Distinguish the effect of roughness on contact angle and surface free energy.

t317

High Pressure Chamber

The High Pressure Chamber is designed for wettability research within enhanced oil recovery and enables measurements at pressures up to 400 bars and temperatures up to 200°C. Integrated chamber piston and sample port are optimized for the best usability and versatility.

c204a

Tilting cradle

A software controlled tilting cradle. Used for studying dynamic contact angles. Tilting range from 0 to 90° and tilting resolution 0.1°. The vacuum stage top C204B is recommended to be used with this option.

t214

Pulsating Drop Module - PD200

Software controlled drop size pulsing for interfacial rheology measurement of viscoelastic properties of interfacial layers at liquid-air or liquid-liquid interfaces.

t315a

Picoliter Dispenser

Automated picoliter-scale drop formation. Especially for inkjet applications and for measuring contact angle on very small sample areas.
