sigma703D

Measurements

  • Surface and interfacial tension measurements Surface tension/interfacial tension with Du Noüy ring and Wilhelmy plate.
  • Density For liquid density measurements.

Manual stand-alone tensiometer with electronic balance

Ease of use
Low barrier to measure
Automatic correction
With Huh-Mason and Zuidema-Waters

Key features

  • High precision

    Comes with the super sensitive balance

  • Quick measurement

    No need to use computer to run the instrument

  • Instant Results

    Results shown on the screen immediately

Applications

  • Chemicals
  • Coatings
  • Food & beverages
  • Pharmaceutical
  • Energy
  • Environment
Download brochure

Would you like to get the full brochure to your inbox?

Get it now
Close

A closer look

Dive into the specifics of Sigma Base and compare it to our other instruments to make a smart decision on what you need.

Compare Attension Force Tensiometer range

Measurement Capabilities

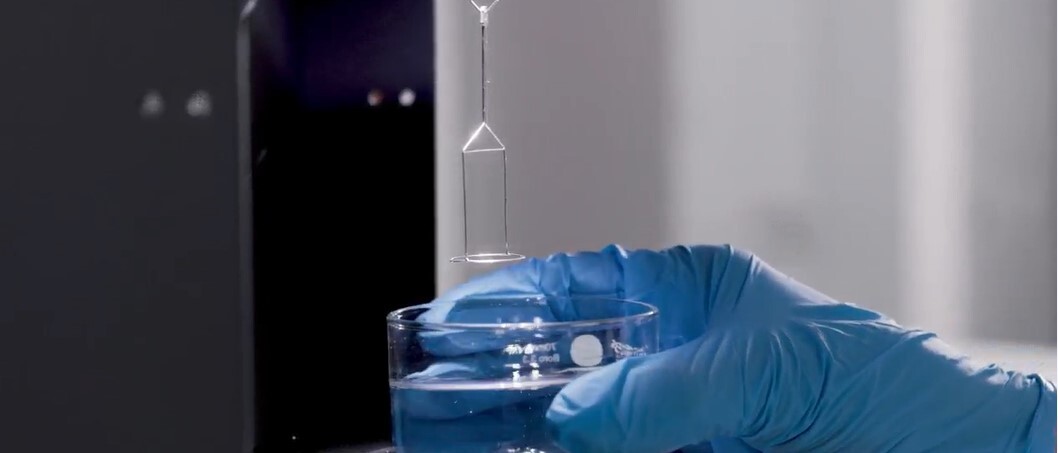

Surface tension with Du Noüy ring
 √
Surface tension with Wilhelmy plate
 √
Surface tension with rod
 -
Interfacial tension with Du Noüy ring √
Density of liquid √

Measurement performance

Surface tension range
 1 - 1000 mN/m
Displayed resolution
 0.01 mN/m
ST resolution - ring
 0.01 mN/m
ST resolution - plate 0.02 mN/m
Density range 0 - 2.2 g/cm3
Density resolution 0.001 g/cm3

Balance and force sensing

Max. load
 5 g
Weight resolution
 10 μg
Force resolution
 0.1 μN
Measurement rate 50 Hz
Taring Automatic
Calibration & Locking  Manual

Sample stage & Motion

Sample stage
 Manual
Sample stage movement range
 30 mm

Instrument - Physical & Electrical

Dimensions (L x W x H)
 275x 155 x 392 mm
Weight
 5 kg
Power supply
 100-240 Vac
Frequency 50 - 60 Hz
Power consumption 7 W
Connectivity USB-A
Standalone Yes
PC-controlled mode No

Accessories

Ionizer -
pH Sensor
 -
Temperature control range -20 - 200 °C
Stirrer -
Bubble level -
Ambient temperature sensor -
Thermostatic vessel Yes
Temperature probe -

Software & System Requirements

Software DataReceiver
Result output Printed receipt .text

Embedded Software and Data Receiver

Sigma Base comes with a powerful integrated software that guides the user in the measurements and shows the results on the integrated screen. Data can be also stored in PC with Data Receiver software for additional data storage and reporting.

Integrated Software

  • Standalone operation

    Run measurements and view results directly on the instrument screen, with no external computer required.

  • Intuitive workflow

    A clear, user-friendly interface makes the instrument easy to operate right out of the box, with minimal training needed.

  • Reliable results and flexible data handling

    A high-end digital balance supports precise measurements, while results can be viewed onscreen, transferred to a PC, or printed using an optional printer.

Add more possibilities

Check out accessories and modules available for Sigma Base. We selected a few favorites for you, but you can always find the complete list below.

t106

Platinum Du Nouy ring

Pt-Ir-ring made to fulfill the requirements at least in following standards; ISO 301, ISO 4311, ISO 6889, ASTM D1331 and ASTM D 971. Includes also additional weight for push-mode.

T107

Platinum Wilhelmy plate

Platinum Wilhelmy plate with micro roughened surface.

t705a

Thermostatic vessel (from -20 to +200°C)

Chamber made from Teflon and Aluminum for temperature control of the sample liquid. A heat exchange vessel with fluid jacket type of construction. Heating/cooling of the fluid jacket requires external bath/circulator (T102ME or T102USB). Fits glass sample vessel 70 mm in diameter (T104). Operable temperature range from -20 to +200°C .

t702pr

RS232-compatible printer

For printing results directly from instrument into paper.
