In a hurry?

Discover Attension Sigma Transformer Oil and all of its advantages in this 2 minutes long video.

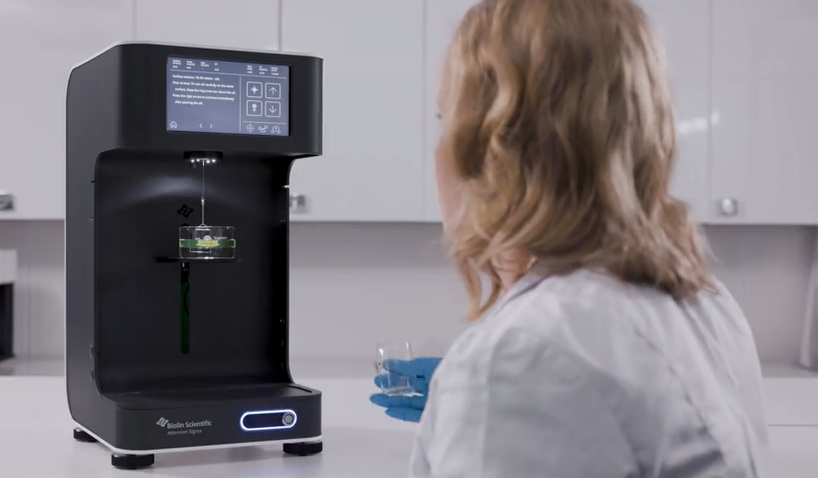

oil

Measurements

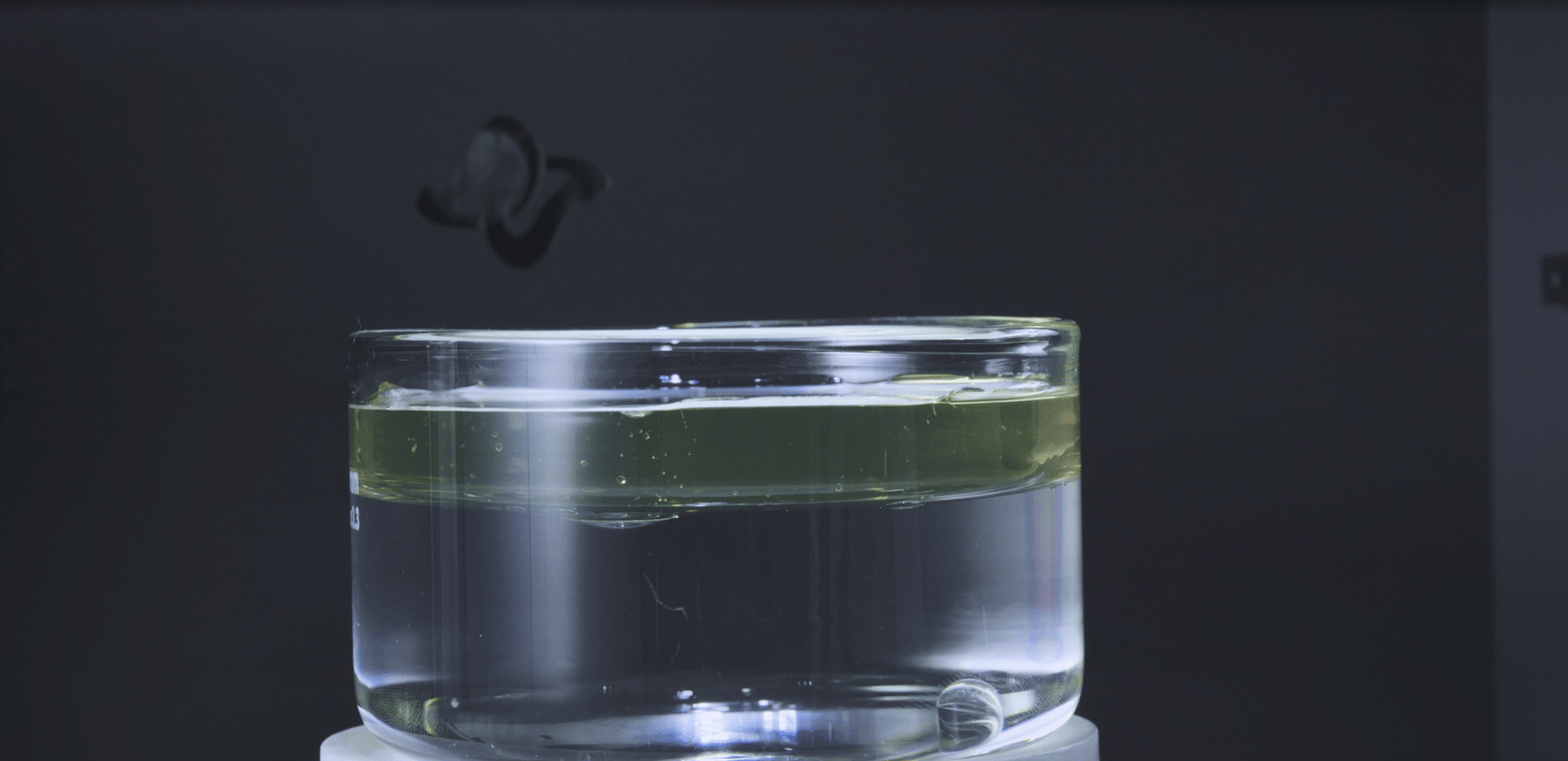

  • Surface and interfacial tension measurement Du Noüy ring method
  • Density For liquid density measurements.

Quality control of transformer oil

Measurements according to standards
Follow ASTM D971 or IEC 62961 standards
Integrated user guidance
Low barrier to operate

Key features

  • Quick measurements

    Get results in minutes

  • Results as .pdf files

    Transfer results from the instrument to your computer or phone through USB-C connection

  • High precision

    Highly sensitive balance combined with super accurate samples stage movement guarantee reliable measurements

  • Multiple correction methods for Du Nouy ring

    Huh-Mason, Zuidema-Waters and Harkin-Jordan corrections available

  • Several probe options for surface tension

    Use Platinum Du Nouy ring or Wilhelmy plate, platinum rod or paper plates

  • Additional capabilities

    Add advanced sample stage for temperature, pH or stirrer. Include ionizer to remove static discharge

Applications

  • Energy
  • Chemicals
  • Coatings
  • Food & beverages
  • Pharmaceutical
  • Environment
All-inclusive system

Easy operation without PC

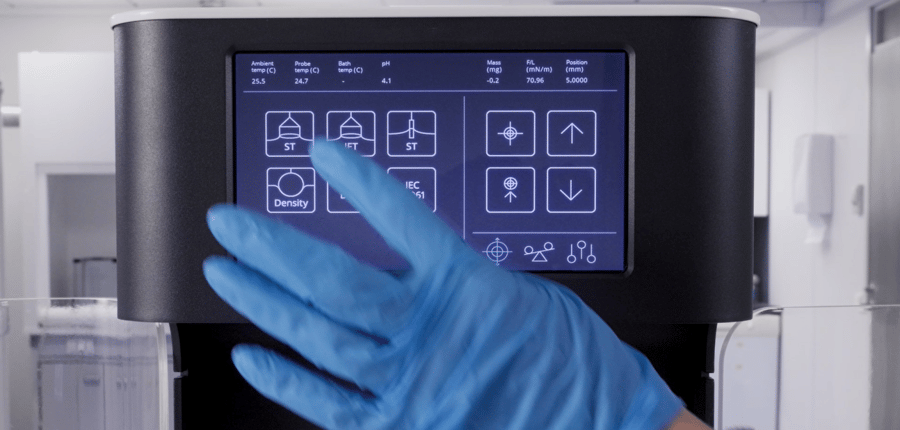

screen3

Sigma Transformer Oil features an intuitive touch display with a guided interface, making transformer oil quality control to ASTM D971 and IEC 62961 standards straightforward — minimal training required, from measurement to report.

Download brochure

Would you like to get the full brochure to your inbox?

Download it now
Close

A closer look

Dive into the specifics of Sigma Transformer Oil and compare it to our other instruments to make a smart decision on what you need.

Compare Attension Force Tensiometer range

Measurement Capabilities

Surface tension with Du Noüy ring √
Surface tension with Wilhelmy plate
 √
Surface tension with rod
 √
Interfacial tension with Du Noüy ring √
Density of liquid √

Measurement performance

Surface tension 1....2000 mN/m
Displayed resolution
 0.01 mN/m
ST resolution - ring
 0.01 mN/m
ST resolution - plate  0.02 mN/m
Density range 0...2.2 g/cm3
Density resolution

Balance and force sensing

Max. load
 5 g
Weight resolution
 0.01 mg
Force resolution
 10 μg
Measurement rate 50 Hz
Taring Automatic
Calibration & Locking  Manual

Sample stage & Motion

Travel distance
 125 mm
Sample stage
 Automatic
Sample stage speed
 0.001 - 800 mm / min
Stage position resolution 16 nm

Instrument - Physical & Electrical

Dimensions (L x W x H)
 265 x 300 x 500 mm
Weight
 15 kg
Power supply
 100 ... 240 VAC
Frequency 50 - 60 Hz
Power consumption 20 W
Connectivity USB-C
Standalone Yes
PC-controlled mode No

Accessories

Ionizer
 Optional
pH Sensor
 Optional
Temperature control range
 -20....+200 °C
Stirrer Optional
Bubble level Built-in
Ambient temperature sensor Built-in
Thermostatic vessel Optional
Temperature probe Optional

Software & System Requirements

Software Integrated
Result output .pdf

Integrated Software

 Sigma Transformer Oil comes with a powerful embedded software that guides the user in the measurements according to the relevant standards and shows the results on the integrated screen. Data can be also stored in PC with Data Receiver software for additional data storage and reporting.

Integrated Software

  • Operation via touch display

    Embedded software allowing full instrument operation via touch display.

  • Surface and interfacial tension made easy

    Surface and interfacial tension as well as liquid density measurements can be performed with ease.

  • No training needed

    Intuitive user interface with guidance provides a platform that can be used by anyone with minimum training needed.
Stand-alone main screen

Intuitive UI for surface and interfacial tension

Standalone mode has intuitive user interface allowing measurements of surface and interfacial tension with Du Noüy ring, surface tension with Wilhelmy plate, and density.

Du Nouy ring settings

Default settings and guided measurements

Each measurement type has default settings that can be used in most use cases. If needed, modification of the most important parameters can be done. User interface will guide the operator through the measurement steps.

pdf report

Results displayed on screen and .pdf

 Immediately after the measurement is completed, the results are shown on the instrument screen. Each measurement will automatically create .pdf file, up to 100 of them can be stored in the instrument memory. Connect the instrument to computer or phone via USB-C and store the reports to external drive, quality system or share with the colleagues.

Add more possibilities

Simplify your work and explore more with these selected extras for Sigma Transformer Oil. You can find the full range below.



t106

Platinum Du Nouy ring

Pt-Ir-ring made to fulfill the requirements at least in following standards; ISO 301, ISO 4311, ISO 6889, ASTM D1331 and ASTM D 971. Includes also additional weight for push-mode.

t705a

Thermostatic vessel

Chamber made from Teflon and Aluminum for temperature control of the sample liquid. A heat exchange vessel with fluid jacket type of construction. Heating/cooling of the fluid jacket requires external bath/circulator (T102ME or T102USB). Fits glass sample vessel 70 mm in diameter (T104). Operable temperature range from -20 to +200°C .

t702pr

RS232-compatible printer

For printing results directly from instrument into paper.
