What you can measure

  • Static contact angle
    Sessile drop, captive bubble and meniscus methods
  • Dynamic contact angle
    Dynamic contact angle, advancing and receding contact angle, contact angle hysteresis and roll-off angle
  • Surface free energy
    Sessile drop, captive bubble and meniscus methods
  • Surface- and interfacial tension

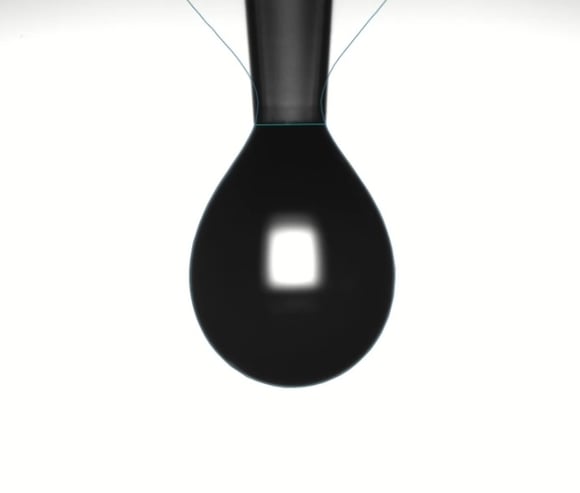

    Pendant drop and reverse pendant drop methods
  • Roughness-corrected contact angle and 3D surface roughness
    Fringe projection phase shifting method
  • Interfacial dilatational rheology
    P    ulsating drop method

Widen your view

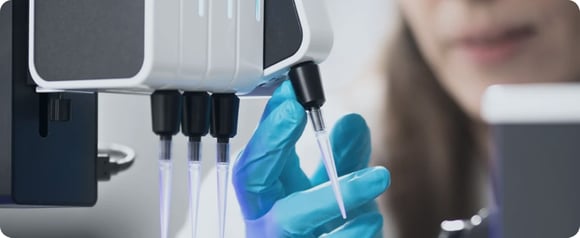

This 3-minute video will provide you with all you need to know about Theta Flex. Watch the video in fullscreen for the best experience.

3 reasons to invest

One instrument for all your needs

Flexible at its core, this instrument gives you plenty of measuring possibilities. All neatly packed in our easy-to-use software. Add accessories and modules to match your needs.

Results you can trust

We know that high quality imaging is essential for high quality results. Therefore the Theta Flex camera has a resolution of 1984 × 1264 px with a maximum of 3009 FPS. Sophisticated algorithms record and analyze the contact angle and surface free energy for you, and you can follow the experiment in real-time.

Need for speed?

All steps of your measurements can be automated to speed things up in the lab. This way you can also avoid user dependency. The outcome will be more precise, and experimenting more smooth. Enjoy.

Red-dot-award-best-industrial

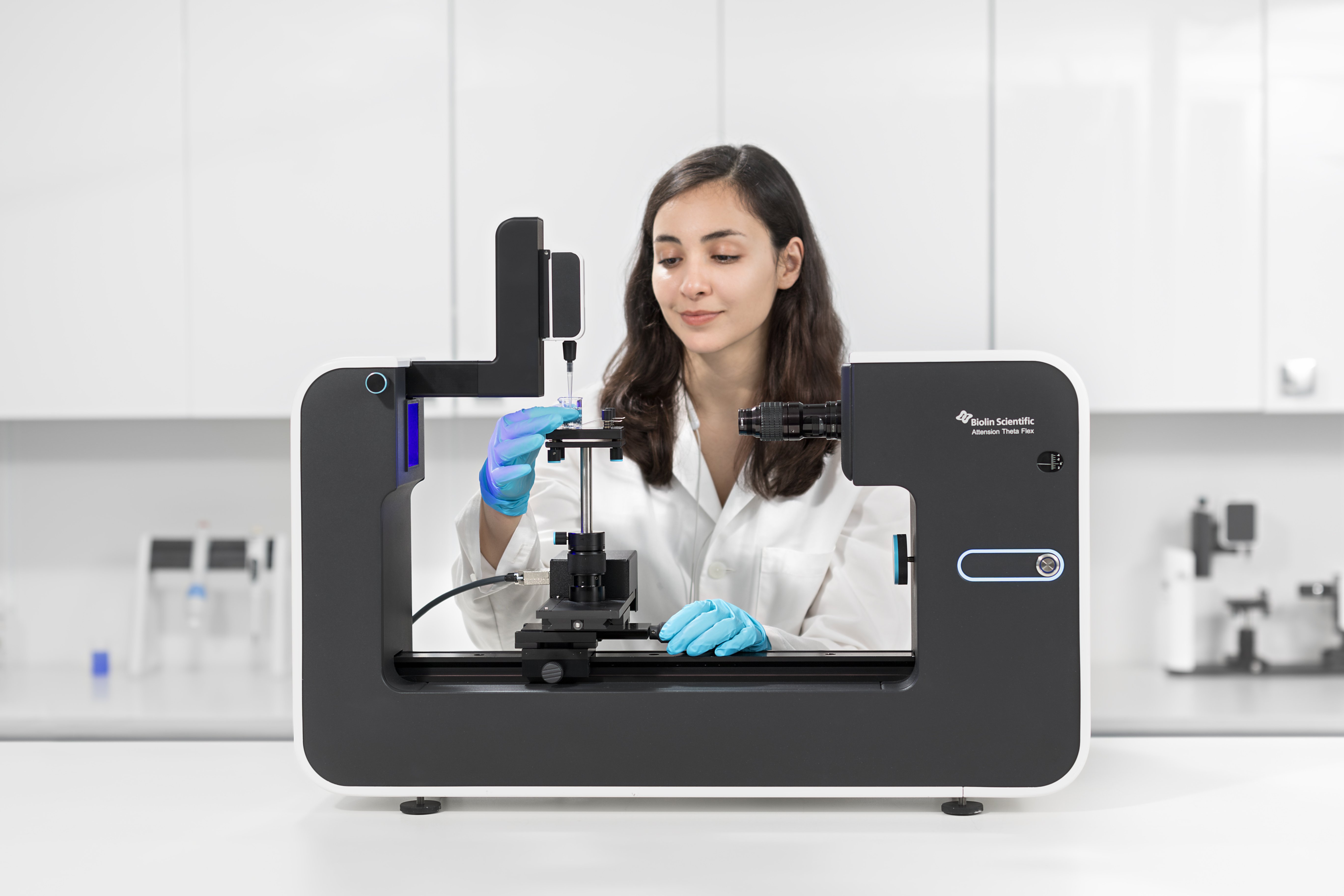

Attension Theta Flex

An award-winning instrument

Did you know that Attension Theta Flex received a Red Dot for its ground-breaking  and intuitive design? Our instrument was elected Best of the best in the category of Industrial design at the Red Dot Award for Product Design 2020, making it a winner in the world’s most renowned design competition.

“Our experienced jury only awards the Red Dot: Best of the Best to the most convincing products in a category. This is why only a small percentage of the objects entered win this award. It is proof that every detail of the design is coherent and well thought through. Consumers can trust our experts’ decision entirely and can rest assured that the products are of top quality.” says Professor Dr. Peter Zec, founder and CEO of Red Dot.

Read the review

Download brochure

Would you like to get the full brochure to your inbox?

Get it now
Close

A closer look

Check out the specifics of Theta Flex and compare it Theta Flow and Theta Lite to find out what you need. Theta Flex systems come in ready-made packages optimized for your automation level. Other packages can also be formed easily thanks to the modular design.


Theta Flow
Theta Flex
Theta Lite

Available Measurements
Static contact angle and captive bubble
√
√
√
Batch contact angle
√
√
√
Dynamic contact angle
√
√
√
Meniscus contact angle
√
√
√
Surface/Interfacial tension
√
√
√
3D surface roughness and roughness-corrected contact angle
√
√
-
Interfacial rheology
√
√
-
Surface free energy

Zisman Plot, OWRK/Extended Fowkes, van Oss Acid-Base, Wu, Neumann’s Equation of State, Schultz 1 and 2

Software and hardware
Measuring range (°, mN/m)

0…180, 0.01…2000

 0…180, 0.01…2000 0…180, 0.01…2000
Accuracy (°, mN/m)

±0.1, ±0.01

 ±0.1, ±0.01 ±0.1, ±0.01
Maximum sample size (mm)

Unlimited×100×320

 Unlimited×100×320 (with stage) Unlimited×45×200 (with stage)
Integrated sample holders
√
√
√
Maximum resolution (px)

2592 x 2048 (5 MP)

 1984 × 1264 (2.3 MP) 1280 × 1024 (1.3 MP)
Maximum measuring speed (fps)

3422

 3009 2068
Camera

CMOS 1'' USB 3.0 digital camera with zoom

 CMOS 2/3'' USB 3.0 digital camera with zoom CMOS 1/2'' USB 3.0 digital camera with fixed zoom
Image focusing

Software-controlled autofocus, manual fine focus in optics

 Manual fine focus in optics Manual fine focus by optical rail
Image quality

Enhanced with DropletPlus technology, Native

 Native Native
Camera protection

Inside instrument covers

 Inside instrument covers Inside instrument covers
Camera view angle (°)

-4 ... 2.5, with digital scale

 -4.5 ... 2.5, with mechanical scale -2 ... 2
Light source and size

LED based homogeneous background lighting, 62 x 62 mm

 LED based homogeneous background lighting, 62 x 62 mm LED based background lighting, Ø 20 mm
Field of view (Ø, mm)

1.44…45.3

 1.44…32.3 2.9…12
Measurement indicator LED
√
√
-
Integrated touch display
√
-
-
Environment monitoring
√
-
-
Disposable tip dispensing
√
√
√
Software

OneAttension, includes all measurement modes

OneAttension, includes all measurement modes

OneAttension, includes all measurement modes
Dimensions — Basic frame (L×W×H, mm)

765 x 230 x 435

 765 x 230 x 435 495 x 130 x 310
Weight — Basic frame (kg)

29

 26 5
Power supply (VAC)

100...240

 100...240 100…240
Frequency (Hz)

50...60

 50...60 50 ... 60

Dispenser
Droplet placement
Sample stage
Camera
Possible upgrades
Theta Flex Auto 5
 Auto, 4 liquids Auto Auto XYZ 1984 × 1264 px, max 3009 FPS Full
Theta Flex Auto 4
 Auto, 2 liquids Auto Auto XYZ 1984 × 1264 px, max 3009 FPS Full
Theta Flex Auto 3
 Auto, 1 liquid Auto Auto XYZ 1984 × 1264 px, max 3009 FPS Full
Theta Flex Auto 2
 Auto, 2 liquids Auto Auto X, Manual YZ 1984 × 1264 px, max 3009 FPS Full
Theta Flex Auto 1
 Auto, 1 liquid Auto Manual XYZ 1984 × 1264 px, max 3009 FPS Full
Theta Flex Plus
 Auto, 1 liquid Manual Manual XYZ 1984 × 1264 px, max 3009 FPS Full
Theta Flex Basic
 Manual Manual Manual XYZ 1984 × 1264 px,  max 3009 FPS Full
Theta Lite Auto 2
 Auto, 2 liquids Manual Manual YZ 1280 x 1024 px,  max 2068 FPS Limited
Theta Lite Auto 1
 Auto, 1 liquid Manual Manual YZ 1280 x 1024 px,  max 2068 FPS Limited
Theta Lite Basic
 Manual Manual Manual YZ

1280 x 1024 px, max 2068 FPS

 Limited

OneAttension Software

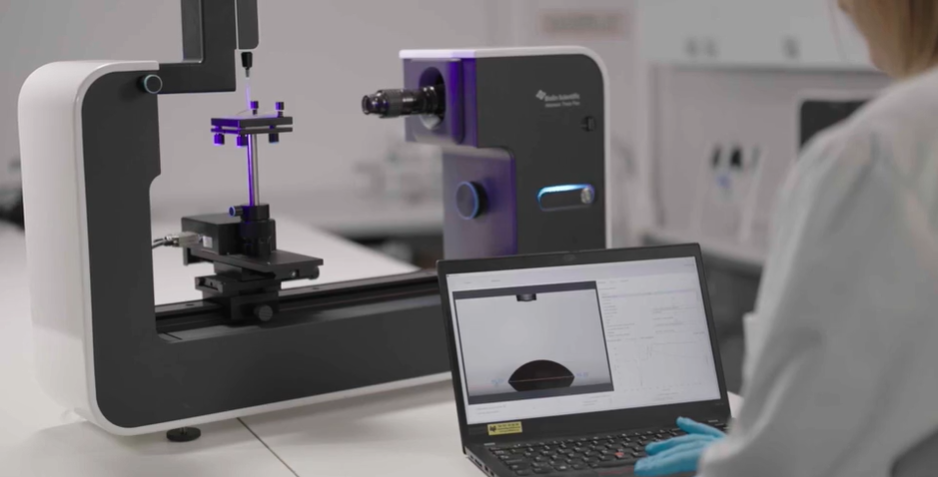

We made our software for Theta Flex with you in mind. It is a fine combination of a very intuitive interface and high functionality. Follow your experiment live, and get the results within seconds. OneAttension is analyzing made easy. Let's have a look at the features!



OneAttension Features

  • User friendly interface
    To get you going in no time
  • Fully automated measurements
    Saving your time and avoiding user dependency
  • Automatic baseline detection and drop shape fitting
    For simplicity and precision
  • Batch angle mode
    When you have plenty of tests to run in no time
  • Meniscus contact angle mode
    When you are finding out the contact angle of fibers
  • Automated liquid purity checkup
    So you can trust your results
  • Fully automatic dynamic contact angle mode with the needle method
    For user-independent results



Add more possibilities

With the modular design and an extensive range of modules and accessories you have room to upgrade or change the Attension Theta Flex as your needs evolve. Have a look at a few selected examples or explore the full range below.

t316

Topography 3D module

Theta Flex can be combined with the unique 3D Topography module that takes the wettability and adhesion analysis into a completely new level by measuring both contact angle and surface roughness of the sample in a single measurement. Distinguish the effect of roughness on contact angle and surface free energy.

t317

High Pressure Chamber

The High Pressure Chamber is designed for wettability research within enhanced oil recovery and enables measurements at pressures up to 400 bars and temperatures up to 200°C. Integrated chamber piston and sample port are optimized for the best usability and versatility.

c204a

Tilting cradle

A software controlled tilting cradle. Used for studying dynamic contact angles. Tilting range from 0 to 90° and tilting resolution 0.1°. The vacuum stage top C204B is recommended to be used with this option.

t214

Pulsating Drop Module - PD200

Software controlled drop size pulsing for interfacial rheology measurement of viscoelastic properties of interfacial layers at liquid-air or liquid-liquid interfaces.

t315a

Picoliter Dispenser

Automated picoliter-scale drop formation. Especially for inkjet applications and for measuring contact angle on very small sample areas.
