Overview

What you can measure

  • Static contact angle
    Sessile drop, captive bubble and meniscus methods
  • Dynamic contact angle
    Dynamic contact angle, advancing and receding contact angle, contact angle hysteresis and roll-off angle
  • Surface free energy
    Sessile drop, captive bubble and meniscus methods
  • Surface- and interfacial tension
    Pendant drop and reverse pendant drop methods
  • Roll-off angle
  • Batch contact angle

Widen your view

This 2-minute video will give you a quick overview of our optical tensiometer Theta Lite. Watch the video in fullscreen for the best experience.

3 reasons to invest

Incredibly easy to use

Theta Lite is controlled with OneAttension software that has been designed for extreme user-friendliness. OneAttension analyzes your results in real-time and includes a batch quality control measurement mode for efficient industrial quality control. No complicated adjustments needed, the system comes fully assembled and ready to perform.


Packed with smart features

The automatic disposable tip dispenser ensures you don’t need to worry about cleaning as droplets are created precisely using a disposable pipette tip. The droplet volume is calculated from the live image with advanced machine vision to ensure repeatability.

Designed for high accuracy

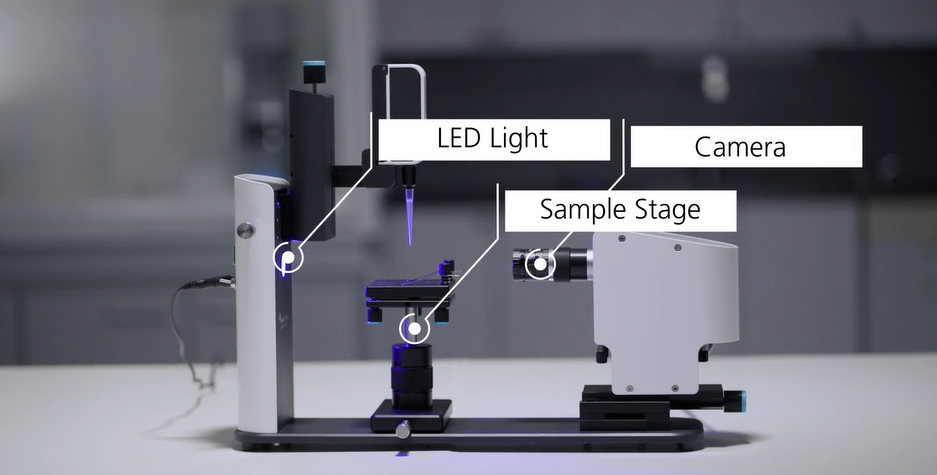

Precise automated or manual droplet deposition will keep the droplet volume the same each time to minimize any result variation. The Theta Lite camera captures the extremely fast wetting phenomena up to 2068 FPS and performs exceptionally precise drop shape analyses with 1280 x 1024 pixel resolution. It is included in every Theta Lite system as a default.
instrumentor-feature-logo

Not sure which tensiometer you need?

Use InstruMentor to find and customize your optimal instrument.

InstruMentor – Tensiometer selector

Specifications

A closer look

Dive in to the specifications of Theta Lite and compare it to Theta Flex to find what you need. Consider automation level and need of double dispensers for handling more than one liquid.


Theta Flex
Theta Lite

Available Measurements
Static contact angle
 √ √
Dynamic contact angle
 Automatic Automatic
Surface/Interfacial tension
 √ √
3D surface roughness
 √ –
Interfacial rheology
 √ –
Surface free energy
 Zisman Plot, OWRK/Extended Fowkes, van Oss Acid-Base, Wu, Neumann’s Equation of State, Schultz 1 and 2

Available Measurement Methods
Sessile drop
 √ √
Batch sessile drop
 √ √
Captive bubble
 √ √
Pendant drop
 √ √
Reverse pendant drop
 √ √
Meniscus
 √ √
Dynamic contact angle
 Automatic Automatic
Pulsating drop
 √ –
3D Topography
 √ –

Hardware
Measuring range (°, mN/m)
 0…180, 0.01…2000 0…180, 0.01…2000
Accuracy (°, mN/m)
 ±0.1, ±0.01 ±0.1, ±0.01
Maximum sample size (mm)
 Unlimited×100×320 (with stage) Unlimited×45×200 (with stage)
Integrated sample holders
 Yes Yes
Frame interval
 0.33 ms ... 1000 s 0.48 ms ... 1000 s
Maximum resolution (px)
 1984×1264 1280×1024
Maximum measuring speed (fps)
 3009 2068
Camera
 USB 3.0 digital camera with zoom USB 3.0 digital camera
Camera protection
 Inside instrument covers Inside instrument covers
Camera view angle (°)
  -4.5 ... 2.5  -2 ... 2
Light source and size
 LED based background lighting, 62 x 62 mm LED based background lighting, Ø 20 mm
Field of view (Ø, mm)
 1.44…32.3 2.9…12
Measurement indicator LED
 Yes No
Disposable tip dispensing
 √ √
Dimensions — Basic frame (L×W×H, mm)
  765 x 230 x 435  495 x 130 x 310
Weight — Basic frame (kg)
 26 5
Power supply (VAC)
 90…264 100…240
Frequency (Hz)
 47 ... 440 50 ... 60

Dispenser
Droplet placement
Sample stage
Camera
Possible upgrades
Theta Flex Auto 5
 Auto, 4 liquids Auto Auto XYZ 1984 × 1264 px, max 3009 FPS Full
Theta Flex Auto 4
 Auto, 2 liquids Auto Auto XYZ 1984 × 1264 px, max 3009 FPS Full
Theta Flex Auto 3
 Auto, 1 liquid Auto Auto XYZ 1984 × 1264 px, max 3009 FPS Full
Theta Flex Auto 2
 Auto, 2 liquids Auto Auto X, Manual YZ 1984 × 1264 px, max 3009 FPS Full
Theta Flex Auto 1
 Auto, 1 liquid Auto Manual XYZ 1984 × 1264 px, max 3009 FPS Full
Theta Flex Plus
 Auto, 1 liquid Manual Manual XYZ 1984 × 1264 px, max 3009 FPS Full
Theta Flex Basic
 Manual Manual Manual XYZ 1984 × 1264 px,  max 3009 FPS Full
Theta Lite Auto 2
 Auto, 2 liquids Manual Manual YZ 1280 x 1024 px,  max 2068 FPS Limited
Theta Lite Auto 1
 Auto, 1 liquid Manual Manual YZ 1280 x 1024 px,  max 2068 FPS Limited
Theta Lite Basic
 Manual Manual Manual YZ

1280 x 1024 px, max 2068 FPS

 Limited

Software

OneAttension Software

We made our software for Theta Lite with you in mind. It is a fine combination of a very intuitive interface and high functionality. Follow your experiment live, and get the results within seconds. OneAttension is analyzing made easy. Let's have a look at the features!

OneAttensionThetaLite

OneAttension Features

  • User friendly interface
    To get you going in no time
  • Fully automatic dynamic contact angle mode with the needle method
    For user independent results
  • Automatic baseline detection and drop shape fitting
    For simplicity and precision
  • Batch angle mode
    When you have plenty of tests to run in no time
  • Meniscus contact angle mode
    When you are finding out the contact angle of fibers
  • Automated liquid purity checkup
    So you can trust your results

Accessories

Add more possibilities

A range of different accessories and modules expand the capabilities of Theta Lite. Explore the possibilities to widen your measurements with our selected favorites, or see the full list below.

c208w

Fluid bath heated cuvette chamber for interfacial tension studies with separate cuvette, 100°C (C208W)

For measurement of interfacial tension between two liquids by pendant/raising drop method. Includes cuvette C208C andwater bath thermostatted sample stage cuvette holder. Requires water bath.
c203w

Measuring chamber, fluid bath heated, 110° C (C203W)

Thermostatted fluid bath measuring chamber for air phase temperature control of substrate and drop. Requires fluid bath
c218

Tilting stage (C218)

Tilting stage with manual tilting. Used for studying dynamic contact angles. Tilting range from 0 to 90°. Coarse and fine tilting movement.
