QCM-D

QSense Explorer

Discover the many possibilities of our most versatile and modular QCM-D instrument. QSense Explorer allows you to study molecular interactions at surfaces and interfaces in real-time in a broad range of measurement conditions.

Request a quote

Guide

Request pre-test sample

In a hurry?

Discover QSense Explorer and all of its advantages in this 3 minutes long video.

phenomena

Adsorption
Desorption
Binding and interactions
Swelling
De-swelling, crosslinking and collapse
Degradation, corrosion and etching

Maximize your versatility

Explore different conditions

Combine QCM-D with other techniques

Key features

Measure mass, thickness, and viscoelastic properties of rigid and soft films

7-harmonic QCM-D with QSense Decay technology enables qualitative and quantitative analysis

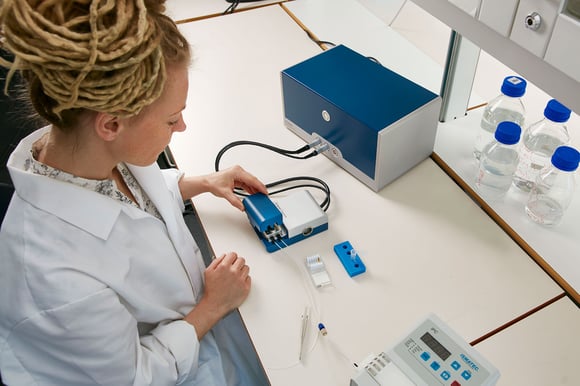

Flexibility of manual procedures

Full freedom to interact during measurements and easy to change between different experimental set-ups
Measure in Extreme temperatures

Compatible with measurement chamber for the extended temperature range of 4-150°C
Most versatile

Allows for maximum experimental combinations and set-ups
Combine with other techniques

Allows you to combine QCM-D with electrochemistry, ellipsometry or microscopy using standard measurement chamber
Broadest offer of sensor surfaces and coatings

Set up model systems that are as close as possible to real-world conditions

Complete analysis set-up

QSOFT AND DFIND SOFTWARE

QSense software is tailored to help you maximize the potential of your QCM-D measurements. With QSoft capturing your data and Dfind simplifying your analysis, you can streamline your research process effortlessly.

measurement conditions

Flow mode
Stagnant mode
Gas phase Requires add-on
Liquid phase
Harsh chemicals
Low temperature Requires add-on
High temperature Requires add-on
Humidity Requires add-on
Variable pressure Requires customization
Inert surface Requires add-on

A closer look

Let's dive into the specifications of QSense Explorer. You can also compare it to other QSense instruments below to find what you are looking for.

Measurement range and capacity

Measurement channels	1
Working temperature	15 to 65 °C, 4 to 150 °C using accessory chamber (QSense High Temperature chamber)
Sensors (frequency range)	5 MHz (1-72)
Number of measured harmonics	7, allows for full viscoelastic modeling

Sample and fluidics

Minimum sample volume, stagnant mode	~ 40 μl ~ 10 μl using add-on module (QSense Open module)
Minimum sample volume, flow mode	~ 200 μl
Flow rates	25-150 μl/min applicable for QSense setup (Peristaltic pump settable to 0-1 ml/min)

Performance characteristics

Maximum time resolution	300 datapoints per second (each datapoint represents an f and D value)
LOD (3 x noise)	1.56 ng/cm2
Sensitivity/limit of detection and noise	See the graph below
Minimum noise	Frequency: 0.03 Hz Mass: 0.5 ng/cm² Dissipation: 11∙10^-9
Long-term stability*	Frequency: < 1 Hz/h Dissipation: < 0.15∙10^-6 Temperature: < 0.02˚C/h

* The temperature stability depends on variations in how the ambient affects the warming or cooling of the chamber. The specified temperature stability may not be reached if the room temperature changes more than ± 1° C, if there is a draft or a heat source nearby. All specifications are subject to change without notice.

Optimal real-life performance

Applying a higher sample rate inevitably leads to higher noise and thus a compromised limit of detection (LOD). What aspect to prioritize depends on the studied surface interaction process. High time resolution may not be critical if very slow changes are studied, and a high measurement sensitivity may not be important if large changes are to be measured. With the 5 Speed-to-Noise modes you can select the right setting to maximize real-life performance for your measurement.

The below figure and table describe the real-measurement performance of QSense Explorer for each acquisition mode. This is much more interesting than maximum values in a specification to understand what to expect from your instrument in a real measurement situation.

Speed and limit detection2-1

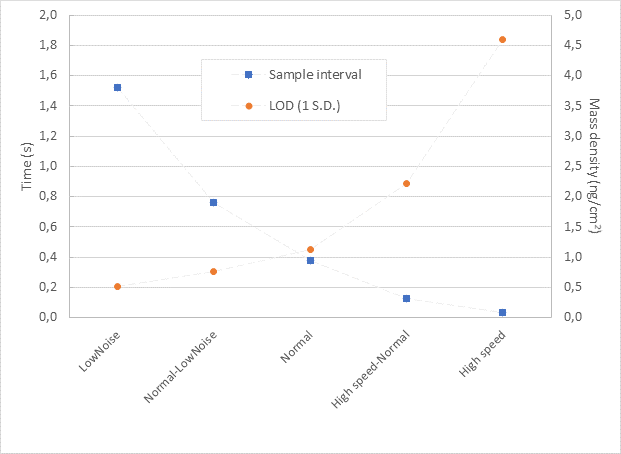

Speed and limit of detection (LOD) per acquisition mode. Limit of detection is set to 1 S.D. of the baseline noise.

QSense-Explorer-LOD

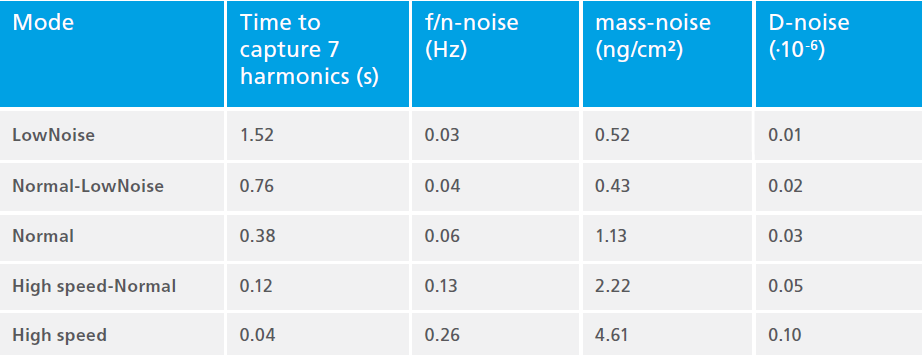

Performance characteristics. Measurements were performed with QSX 303 SiO₂ sensors at 20°C temperature, and in deionized water at a flow of 15µL/min. Each measurement mode was measured for approximately 5 minutes.

Standard sensors

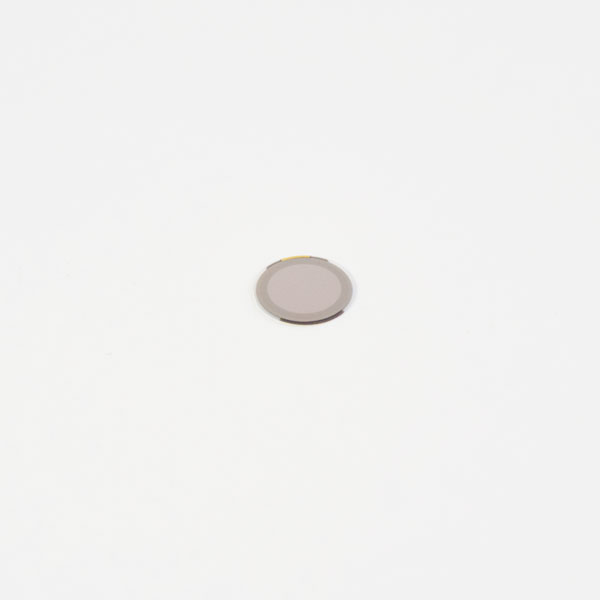

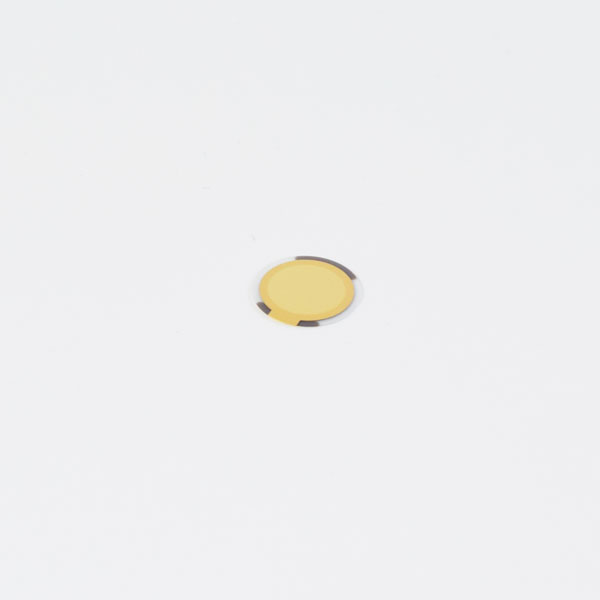

The sensor is at the heart of the QCM-D experiment. Browse the widest range of sensors on the market to find out which sensor material and coating is best suited for your research.

We offer over 50 standard sensors - from various metals, oxides and carbides to polymers, functionalized coatings and and standardized soils. Our sensors are developed and produced to provide you with stable, reliable and reproducible data. Full performance is ensured through extensive quality controls and guaranteed for one-time use according to the recommendations.

Customized sensors

Sensor materials and coatings based on your specific needs

Top suggestions

Stainless Steel SS2343

QSX 305

PS-Hydrophobic Polystyrene

See more here

QSoft and Dfind software

QSense softwares are designed for you to make the most out of your QCM-D measurements. QSoft is collecting your data whereas Dfind makes your analysis easier.

Dfind features

A complete analysis toolbox
One software for all your needs
Intuitive interface
Dfind supports you all the way through your analysis process - from data preparation to final reporting
Guided modelling
To take you through your analysis step by step
Material library
Configuring your modelling setup is easy, just select your sample material from the list
Autoplotting
Visualizes your results throughout the whole analysis
Smart tools
Dfind offers several analysis methods including shifts, rates and slopes to help you extract the information you need
Analyze all data in one go
To save your time, Dfind allows you to review, model and analyze multiple data sets in one go

Would you like to know more about the details of Dfind and learn how the subscription works?

Computer requirements

Required

PC with 64-bit Windows 7 SP1, 8, 8.1 or 10
At least 1366×768 px screen resolution
At least 4 GB RAM

Add more possibilities

QSense Explorer is special. Our most versatile QCM-D instrument has a removable flow module that can be exchanged to to fit your research needs. We have selected a few extras for you to widen your possibilities, and you can find more choices below.

Electrochemistry Module

For simultaneous QCM-D and electrochemistry measurements on the same surface. Enables cyclic voltammetry and electrochemical impedance measurements to explore polymer behavior, electrostatic interactions, corrosion, etc.

Ellipsometry Module

Enables simultaneous QCM-D and ellipsometry measurements on the same surface, which allows for quantification of solvent content in the film. It also gives a refined analysis of the morphological changes of the adsorbed film.

Window Module

The Window Module allows optical access to the sensor surface through a sapphire window. It enables experiments with UV-induced reactions and when used in the QSense Explorer chamber, the compact design also enables microscopy studies of reactions on the sensor.

High Temperature Chamber

With the High Temperature Chamber you can perform measurements in an extended temperature range of 4-150°C.

Configure QSense Explorer with accessories & modules in our Instrument Selector!
