RCA cleaning and contact angle
Susanna Laurén Mar 4, ’25 < 4 min

Wafer cleaning process - RCA cleaning and contact angle

In semiconductor manufacturing, maintaining the purity and integrity of silicon wafers is crucial. This is where the RCA cleaning process comes into play. RCA cleaning was developed by the Radio Corporation of America which is where the acronym comes from. RCA Clean is a standard protocol used to remove organic and inorganic contaminants from silicon wafers, ensuring their readiness for subsequent high-temperature processing steps such as oxidation, diffusion, and chemical vapor deposition (CVD).

The RCA Cleaning Process

The RCA cleaning process consists of two main steps, commonly referred to as SC-1 and SC-2:

  • SC-1 (Standard Clean 1): This step involves a mixture of deionized water, hydrogen peroxide, and ammonium hydroxide. It is designed to remove organic contaminants and particles from the wafer surface by oxidizing them. This step also helps in loosening any particles adhered to the surface.

  • SC-2 (Standard Clean 2): Following SC-1, SC-2 uses a combination of deionized water, hydrogen peroxide, and hydrochloric acid. This step focuses on removing metal ions and any remaining inorganic residues. It is essential to ensure that the wafer surface is free from metallic contamination, which could interfere with the electrical properties of the semiconductor devices.

RCA cleaning leaves the silicon wafer with a thin layer of native oxide which is typically removed with HF. After the SC-2 step, the wafers are dipped in HF to remove the oxide and to prepare the silicon surface for subsequent processing steps.

RCA cleaning effectively removes a wide range of contaminants, including organic residues, particles, and metal ions, which are critical for maintaining the electrical characteristics of the wafers. Clean wafers lead to fewer defects in semiconductor devices, thus improving the overall yield and reliability of the manufacturing process.

Relation to Contact Angle Measurements

Contact angle measurements are a method used to assess the wettability of a surface. In semiconductor processing, these measurements can be used to evaluate the effectiveness of the RCA cleaning process. A lower contact angle on a wafer surface after cleaning indicates better wettability, suggesting that contaminants have been effectively removed and that the surface is hydrophilic. This is crucial for ensuring that subsequent layers adhere properly during device fabrication.

By understanding and applying RCA cleaning in semiconductor manufacturing, engineers can ensure high-quality wafer surfaces, leading to more efficient and reliable electronic devices. This process remains a cornerstone in the production of modern semiconductors, highlighting the importance of cleanliness in material processing and engineering.

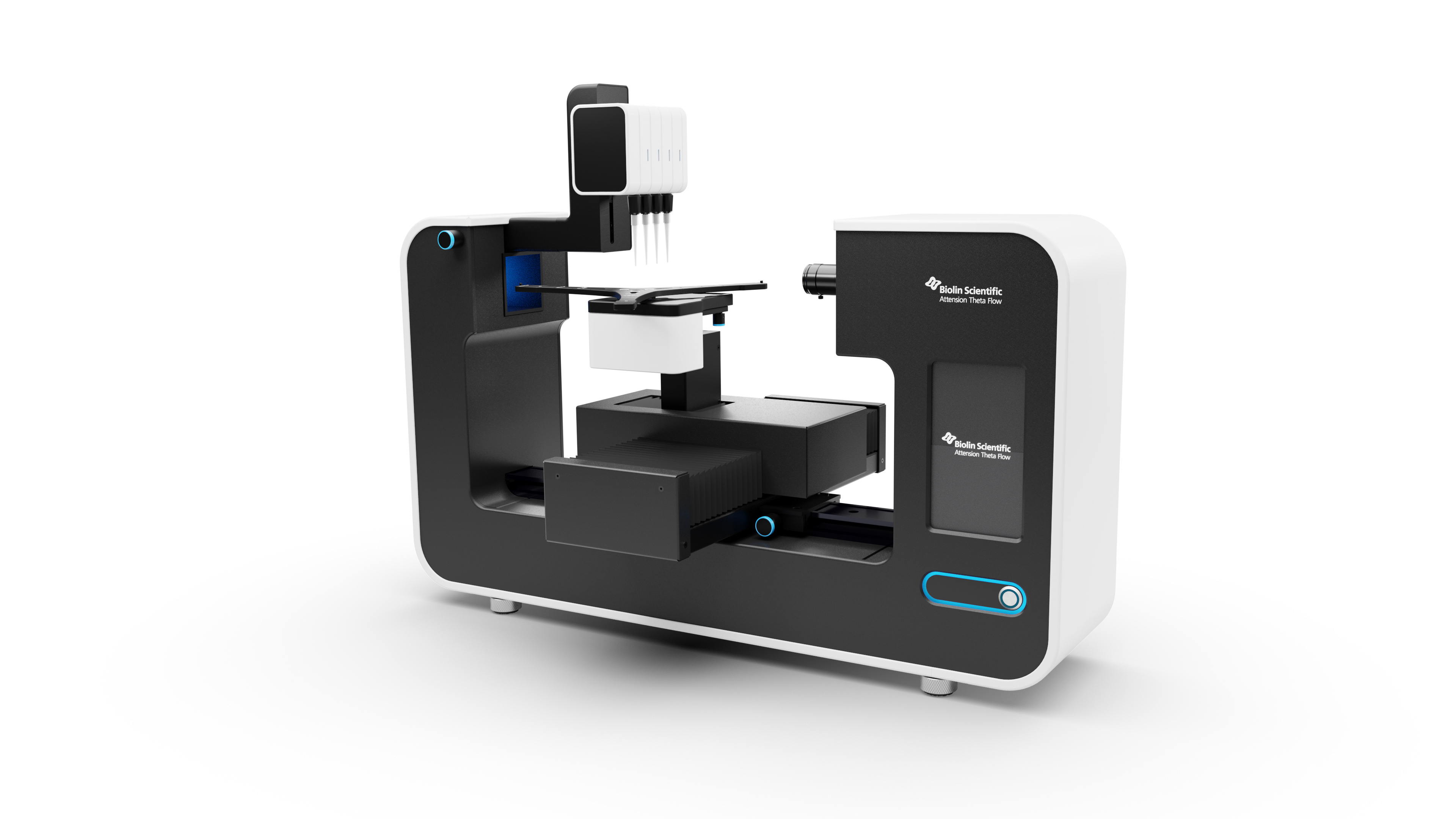

Theta Flow Wafer-1
